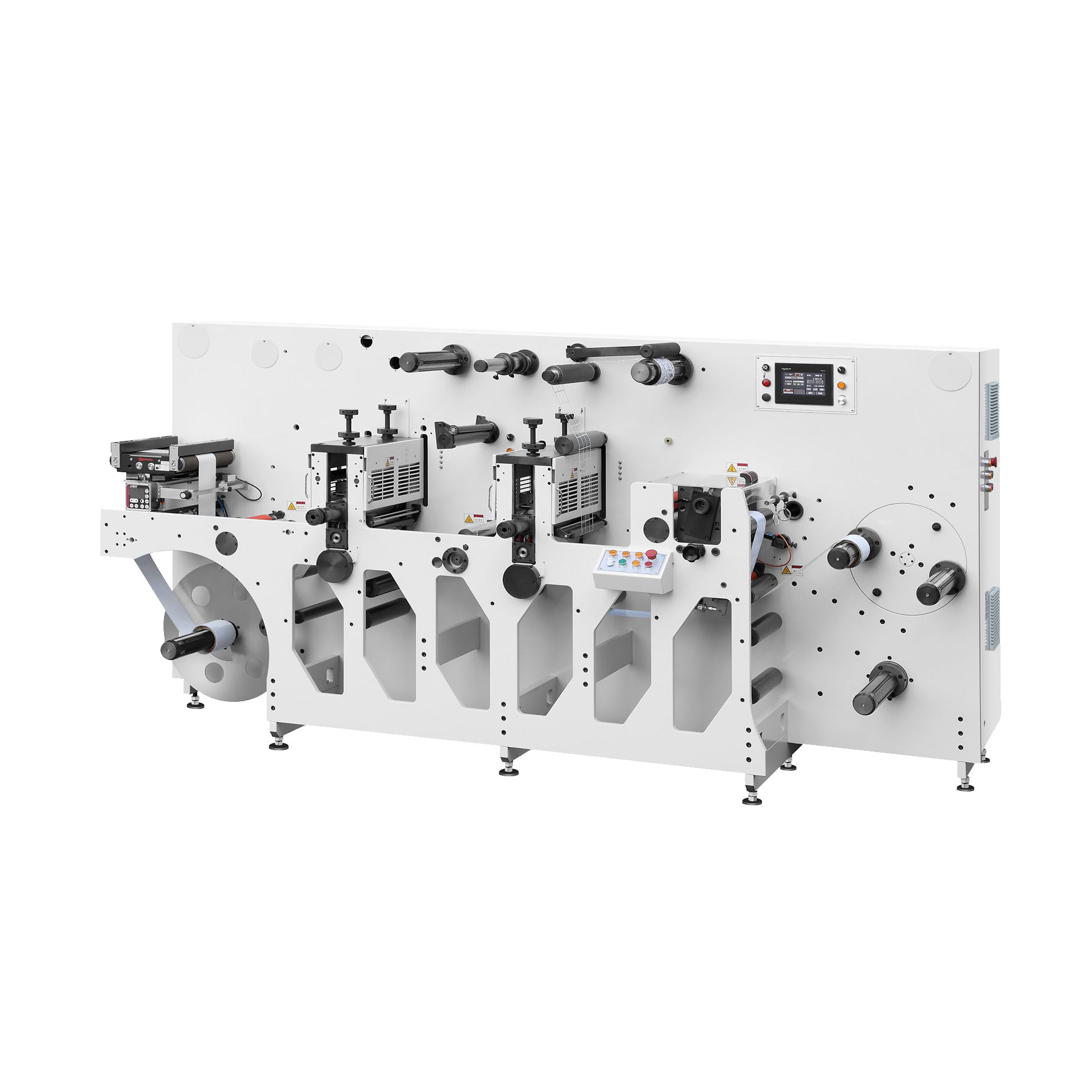

Rhyguan Top Dds

Technical specifications:

Max Speed – 120 m/min
Accuracy of Adhesive Cutting – ±0.15 mm
Registration – Mark Sensor
Max Web Width – 330 mm
Unwinder max. diameter – 700 mm
Rewinder max. diameter – 700 mm
Air Supply – 0.4 ~ 0.6 MPa
Total Motor Power – 14 kw
Dimensions – 2800 x 1300 x 2000 mm
Weight – 3000 KGS
Min Slitting width – 16 mm

Description

DUAL DIE-CUTTING MACHINE WITH A COMPETITIVE PRICE.

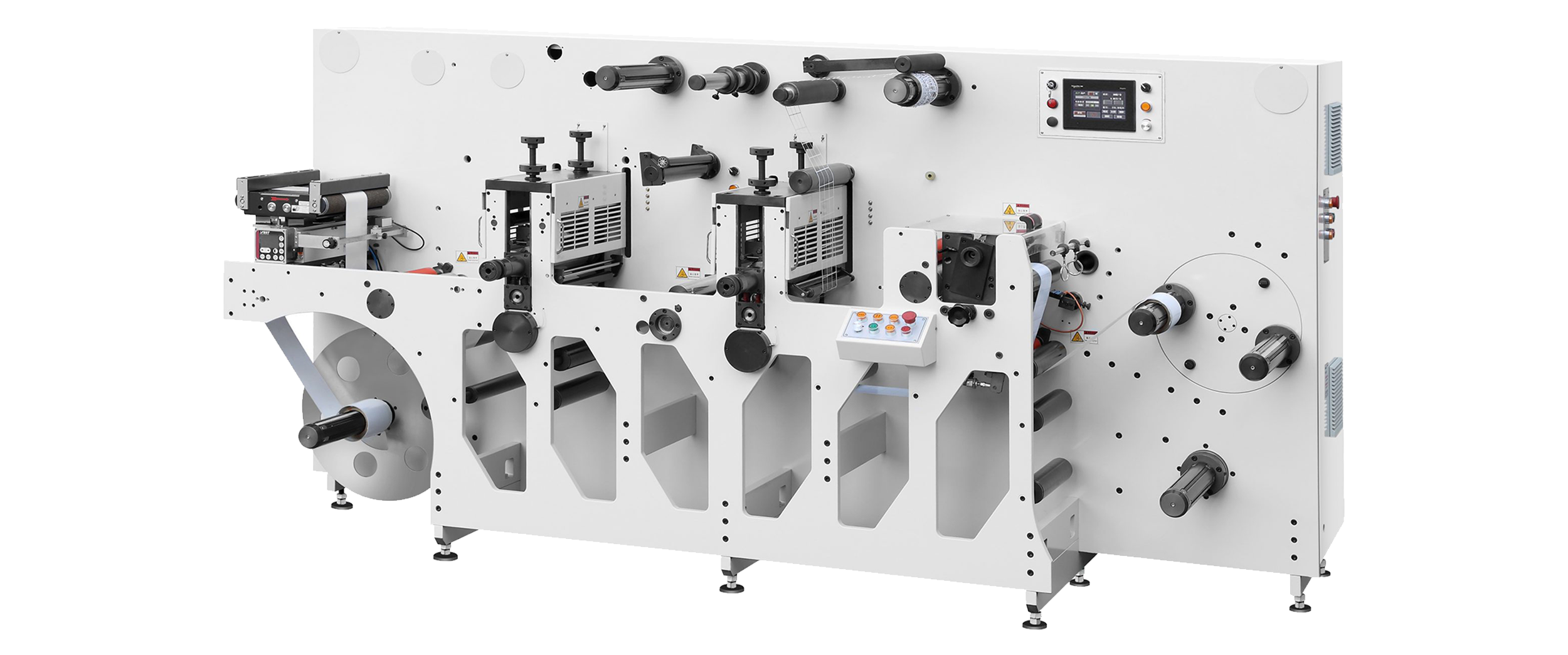

RHYGUAN TOP DDS

The Rhyguan TOP330DDS is a compact solution for professional label converters that seek an economical solution for die-cutting labels in two steps. Fitted with a servo-driven Semi-Rotary dual die-cutting unit, which can also run full rotary.

Upgrade with IML support, lamination, automatic slitting, ESKO/CERM integration, Turret rewinding, or cut-sheet on a conveyor belt. Click to learn more and see what other options are available.

ABOUT RHYGUAN TOP DDS

FEATURES & BENEFITS

Servo driven semi-rotary dual die-cutting unit - Both units share the same step-and-repeat. The dual die-station has its own independent reregistration and tension control. Operator can run the dual-die station in full rotary modus also.

25mm Solid steel frame - 25mm Solid steel frame is the basis for durability

Best branded components - Best branded components on the inside that last a long life-span

Upgrade for IML labels - Upgrade to support IML labels, with conveyor belt and batch separation.

Link with 3rd party systems - Upgrade to Link with 3rd party systems: AVT, other Inspection, ESKO, CERM

Extra options - Upgrade with slitting (standard or automatic), turret or dual rewinding, cut-sheeting or cross perforation.

SERVO DRIVEN SEMI-ROTARY DUAL DIE-CUTTING UNIT

RHYGUAN TOP DDS

Both Units Share The Same Step-And-Repeat. The Dual Die-Station Has Its Own Independent Reregistration And Tension Control. Operator Can Run The Dual-Die Station In Full Rotary Modus Also.
