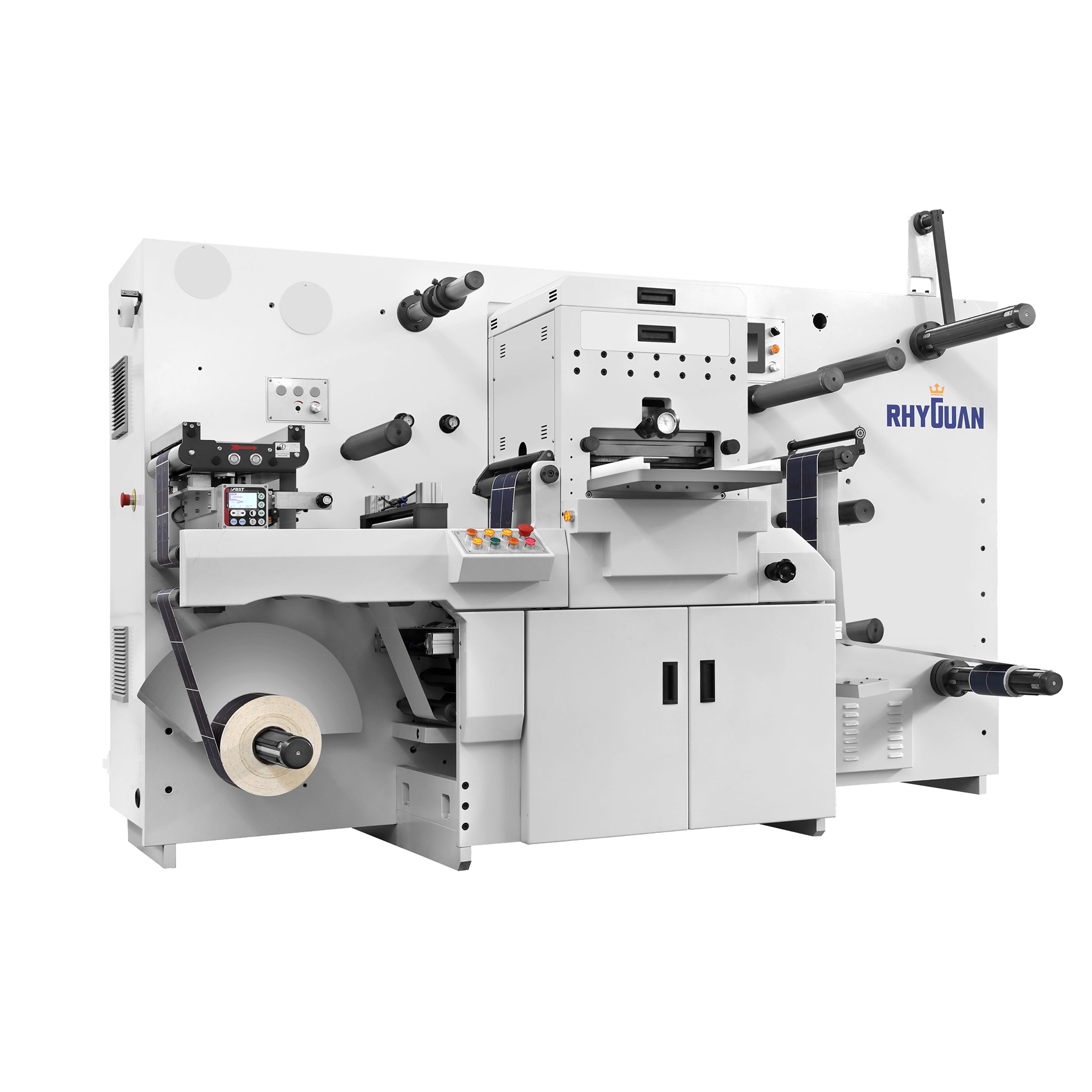

Rhyguan Kiss
Technical specifications:
Max Web Width – 330mm
Max Speed – 120m/min
Unwinder max. diameter – 700mm
Rewinder max. diameter – 700mm
Min Slitting width – 16mm
Accuracy of Adhesive Cutting – ±0.15mm
Air Supply – 0.4~0.6MPa
Total Motor Power – 14KW
Dimensions – 2800×1260×2005mm
Weight – 2800KGS
Max Speed – 120m/min
Unwinder max. diameter – 700mm
Rewinder max. diameter – 700mm
Min Slitting width – 16mm
Accuracy of Adhesive Cutting – ±0.15mm
Air Supply – 0.4~0.6MPa
Total Motor Power – 14KW
Dimensions – 2800×1260×2005mm
Weight – 2800KGS
Description

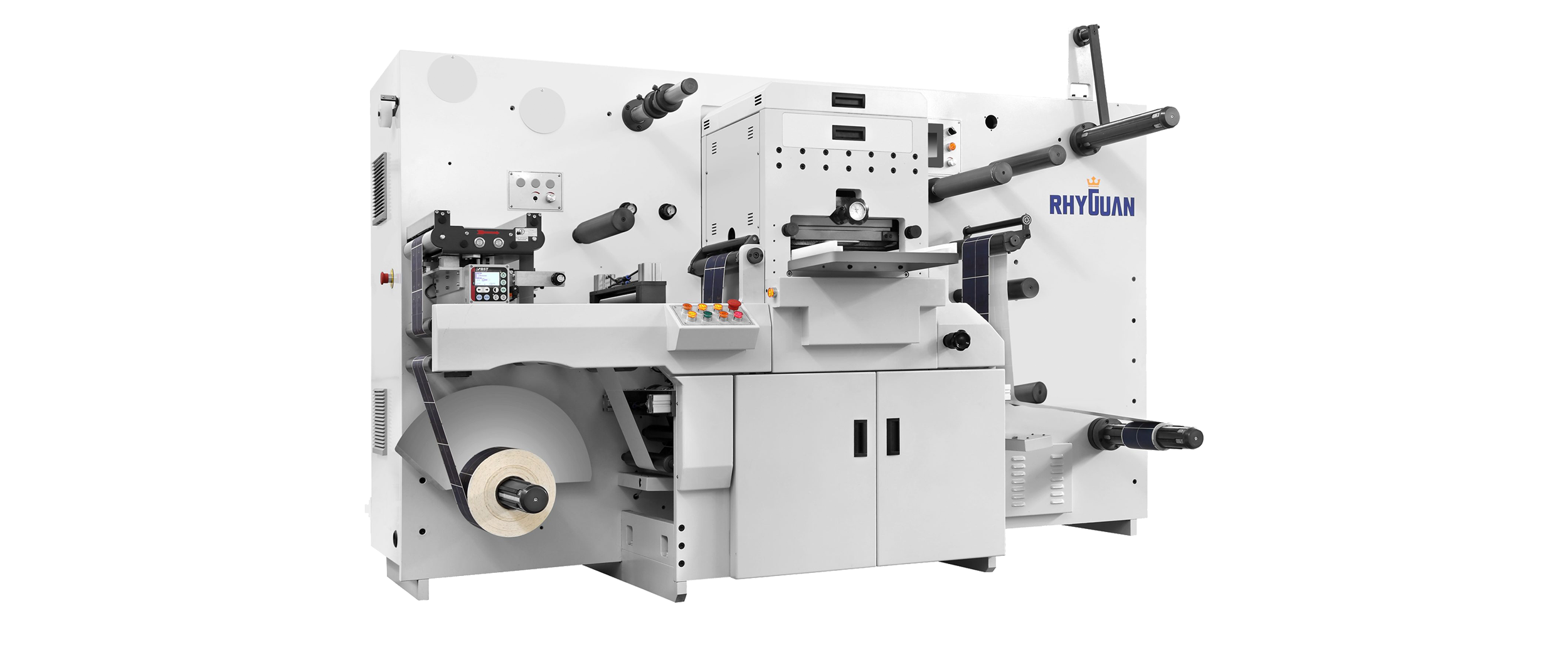

HIGH SPEED STAND-ALONE FLAT-BED DIE-CUTTING MACHINE
RHYGUAN KISS
The KISS330 is a high speed stand-alone flat-bed die-cutting machine for pressure-sensitive labels. The KISS330 offers a maximum speed of 120m/min. It comes with digital servo-driven technology that controls the step-and-repeat, as well as the movement of the stamping die-plate. Because of digital control, all movements are synchronized with extreme precision. Die-cutting pressure is applied from below, and the amount of pressure is digitally controlled through a large servo engine. This unit is standardly suitable for 9.5mm high die-plates, and a maximum top-down movement of approximately 12mm max.
ABOUT RHYGUAN KISS
FEATURES & BENEFITS
Ease of use - Operators can simply set the required die-cutting pressure, the step-and-repeat in the touch-screen user interface. Die-plates can easily and fast be changed on the changing table. After mounting precise changes to the position across the web can be made, and secured.
Productivity - The KIS330 and KISS420 are die-cutting machines designed to allow narrow web label converters to productively employ operators. The actual maximum step-and-repeat is 300mm and the digital servo control allows to stamp 400 times/min. Therefore the KISS330 KISS440 has a maximum production speed of 120m/min. Apart from being fast, the cutting depth and pressure very stable through digitally controlled servo control of the stamping. This allows self-adhesive labels to be cut of the highest quality day after day, and year after year. Operators love the ease of use, precision, stability, and repeatability.
Durability - The KISS330 and KISS420 are designed with a thick 25mm solid metal frame and many branded components on the inside. Even when die-cutting at maximum speed this unit offers a true minimum of vibrations. These basic elements allow the KISS330 and KISS420 to stamp labels to excellent quality for many productive years.
Control die-cutting pressure - Easy setup from a touchscreen user interface.
Lasting and constant quality - Lasting and constant quality with digital servo-controlled die-cutting pressure
High speed - High speed at 400 cuts/minutes with a frame length of 300mm create a true maximum speed of 120m/min
25mm Solid steel frame - 25mm Solid steel frame is the basis for durability
Minimum of vibrations - Minimum of vibrations as software controls the timings of step-and-repeat with extreme precision
Best branded components - Best branded components on the inside that last a long life-span
Link with 3rd party systems - Upgrade to Link with 3rd party systems: AVT, other Inspection, ESKO, CERM
Extra options - Upgrade with slitting, automatic slitting, turret or dual rewinding, or cross perforation or finish with cut-sheeting and a conveyor belt.
Productivity - The KIS330 and KISS420 are die-cutting machines designed to allow narrow web label converters to productively employ operators. The actual maximum step-and-repeat is 300mm and the digital servo control allows to stamp 400 times/min. Therefore the KISS330 KISS440 has a maximum production speed of 120m/min. Apart from being fast, the cutting depth and pressure very stable through digitally controlled servo control of the stamping. This allows self-adhesive labels to be cut of the highest quality day after day, and year after year. Operators love the ease of use, precision, stability, and repeatability.
Durability - The KISS330 and KISS420 are designed with a thick 25mm solid metal frame and many branded components on the inside. Even when die-cutting at maximum speed this unit offers a true minimum of vibrations. These basic elements allow the KISS330 and KISS420 to stamp labels to excellent quality for many productive years.
Control die-cutting pressure - Easy setup from a touchscreen user interface.
Lasting and constant quality - Lasting and constant quality with digital servo-controlled die-cutting pressure
High speed - High speed at 400 cuts/minutes with a frame length of 300mm create a true maximum speed of 120m/min
25mm Solid steel frame - 25mm Solid steel frame is the basis for durability
Minimum of vibrations - Minimum of vibrations as software controls the timings of step-and-repeat with extreme precision
Best branded components - Best branded components on the inside that last a long life-span
Link with 3rd party systems - Upgrade to Link with 3rd party systems: AVT, other Inspection, ESKO, CERM
Extra options - Upgrade with slitting, automatic slitting, turret or dual rewinding, or cross perforation or finish with cut-sheeting and a conveyor belt.
HIGH-SPEED FLATBED DIE CUTTING MACHINE
RHYGUAN KISS
High-speed flatbed die cutting machine with Rhyguan’s special
dancer paper feeding system, enabling impressive speeds of up to
120 m/min. Features
laminator, sheeter, slitter etc.
