Rhyguan Top
Features & Benefits:
TOP-330-3 – AVAILABLE WIDTH: 330MM/420MM/520MM
Max Web Width – 330mm
Max Die-cutting speed (full-rotary) – 110m/min(option 180m/min)
Max Die-cutting Speed (semi-rotary) – 90m/min
Unwinder max. diameter – 800mm
Rewinder max. diameter – 800mm
Min Slitting width – 16mm
Accuracy of Adhesive Cutting – ±0.15mm
Accuracy of IML Cutting – ±0.25mm
Standard Magnetic Cylinder – 152T
Registration – Mark Sensor
Dimensions – 2650×1750×1800 mm
Weight – 2700kgs
Max Die-cutting speed (full-rotary) – 110m/min(option 180m/min)
Max Die-cutting Speed (semi-rotary) – 90m/min
Unwinder max. diameter – 800mm
Rewinder max. diameter – 800mm
Min Slitting width – 16mm
Accuracy of Adhesive Cutting – ±0.15mm
Accuracy of IML Cutting – ±0.25mm
Standard Magnetic Cylinder – 152T
Registration – Mark Sensor
Dimensions – 2650×1750×1800 mm
Weight – 2700kgs
Description

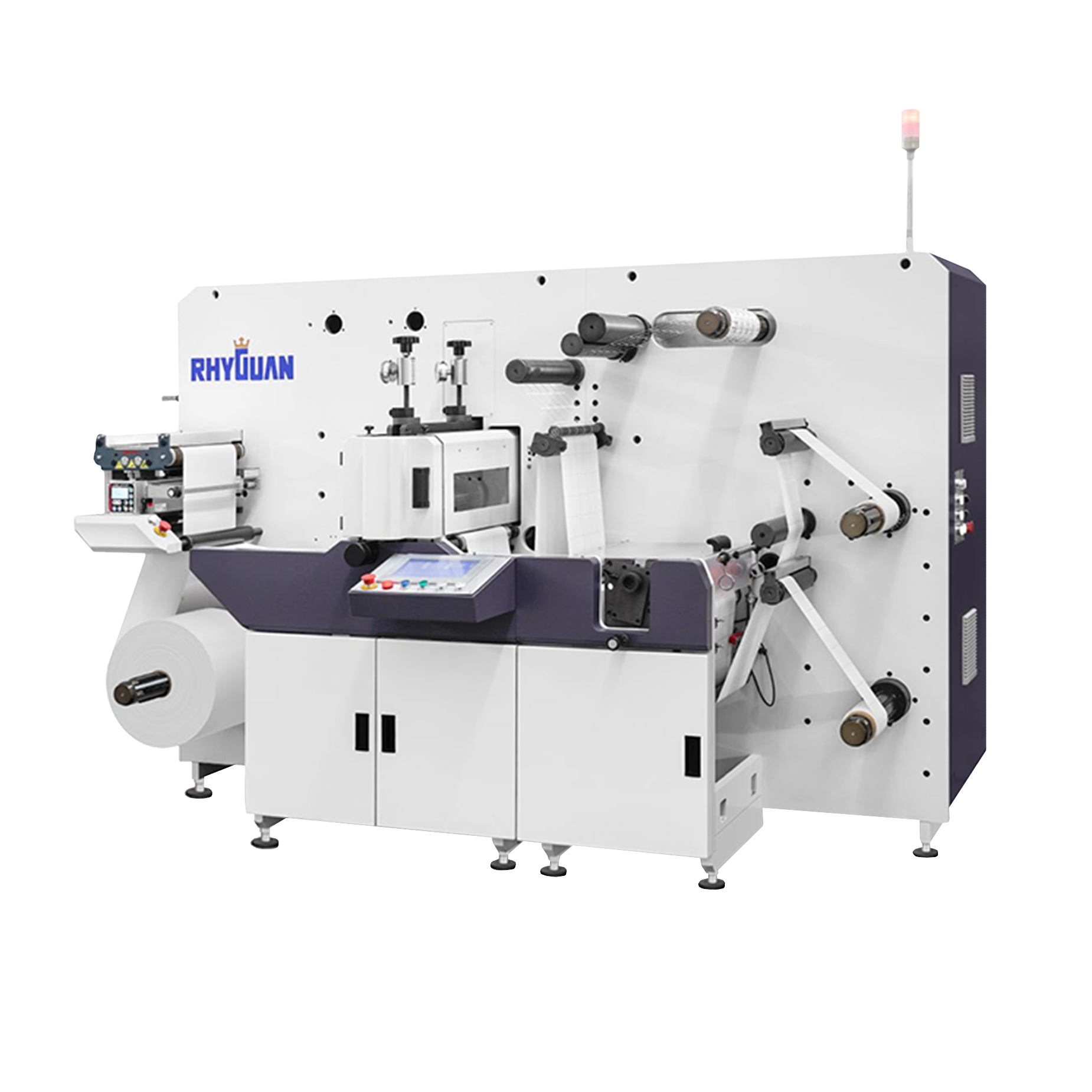

FAST MULTI-FUNCTIONAL LABEL DIE CUTTING MACHINE
RHYGUAN TOP-330-3
Cost-efficient high speed semi-rotary die cutting solution. Offers easy shift from full rotary to semi-rotary, providing high-quality cutting of film and label stock material. Top-330-3 is a good entry level machine for productive and versatile needs. Inline combination available with laminator, slitter and sheeter.
ABOUT RHYGUAN TOP-330-3
AVAILABLE IN WIDTH: 330MM / 450MM / 520MM
Unwinder & Web Guiding - Unwinder with closed-loop tension control. Electronic web guide with ultrasonic edge guide sensor. 76 mm air expanding mandrel. Max diameter 700 mm – 1000 mm roll capacity.
Laminator - Optional, tension-controlled lamination for liner or linerless substrates.
Semi/ Full Rotary Die Cutting - Independent servo driven with Z152 die-cut cylinder and anvil and counter pressure cylinder. Auto pre-positioning, and registration. Semi-rotary die-cut lengths: 50mm-386mm and full rotary: 190.5mm-482mm. Standard with Snowball matrix rewinder.
Slitting Options - Add shear slitting knifes. Increase productivity with automatic shear slitting to control the knifes from the user-interface. Optional further automation and razorblades.
Cut-sheet Delivery - High speed rotary cut-sheet module with a conveyor belt enable sheet cutting and collations. This can be upgraded with an automatic stacking unit and combined with single and dual rewind options for optimal flexibility.
Rewinding Options - Standard single rewind.Upgrade todual rewind, or a semi-automaticturret for optimal productivity.
Laminator - Optional, tension-controlled lamination for liner or linerless substrates.
Semi/ Full Rotary Die Cutting - Independent servo driven with Z152 die-cut cylinder and anvil and counter pressure cylinder. Auto pre-positioning, and registration. Semi-rotary die-cut lengths: 50mm-386mm and full rotary: 190.5mm-482mm. Standard with Snowball matrix rewinder.
Slitting Options - Add shear slitting knifes. Increase productivity with automatic shear slitting to control the knifes from the user-interface. Optional further automation and razorblades.
Cut-sheet Delivery - High speed rotary cut-sheet module with a conveyor belt enable sheet cutting and collations. This can be upgraded with an automatic stacking unit and combined with single and dual rewind options for optimal flexibility.
Rewinding Options - Standard single rewind.Upgrade todual rewind, or a semi-automaticturret for optimal productivity.

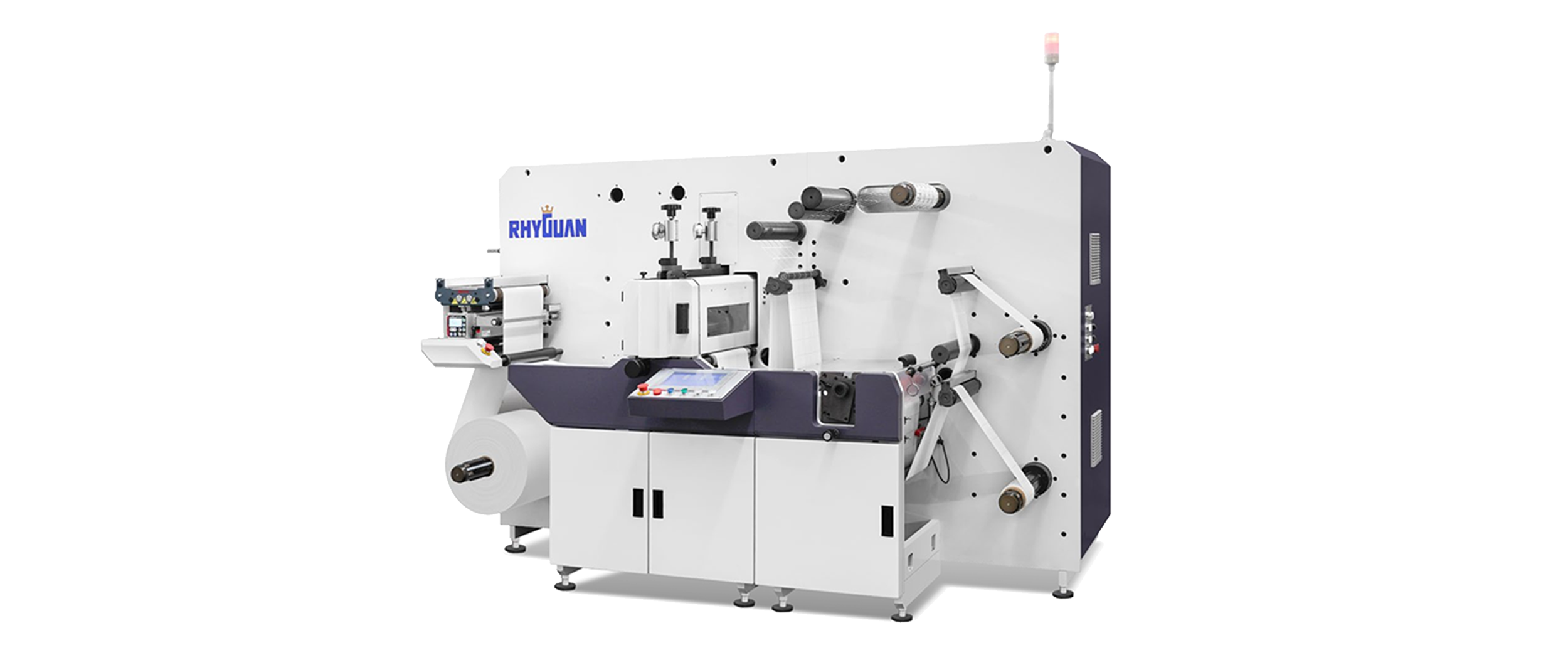

ROTARY DIE CUTTING MACHINE
RHYGUAN TOP-330-3
Rhyguan TOP-330-3 is a good entry level label machine for label converters to ask for productive and versatile needs, and also is cost-efficient.
High speed servo driven semi rotary die cutting machine with independent registration and tension control. Operators can easy shift from full rotary to semi rotary, which providing high quality die-cutting of film and label stock material.
Economically inline combination available with Laminator, Slitter and Sheeter options. And slao can upgrade to add Automatic Slitting, varies Rewinding options
High speed servo driven semi rotary die cutting machine with independent registration and tension control. Operators can easy shift from full rotary to semi rotary, which providing high quality die-cutting of film and label stock material.
Economically inline combination available with Laminator, Slitter and Sheeter options. And slao can upgrade to add Automatic Slitting, varies Rewinding options
