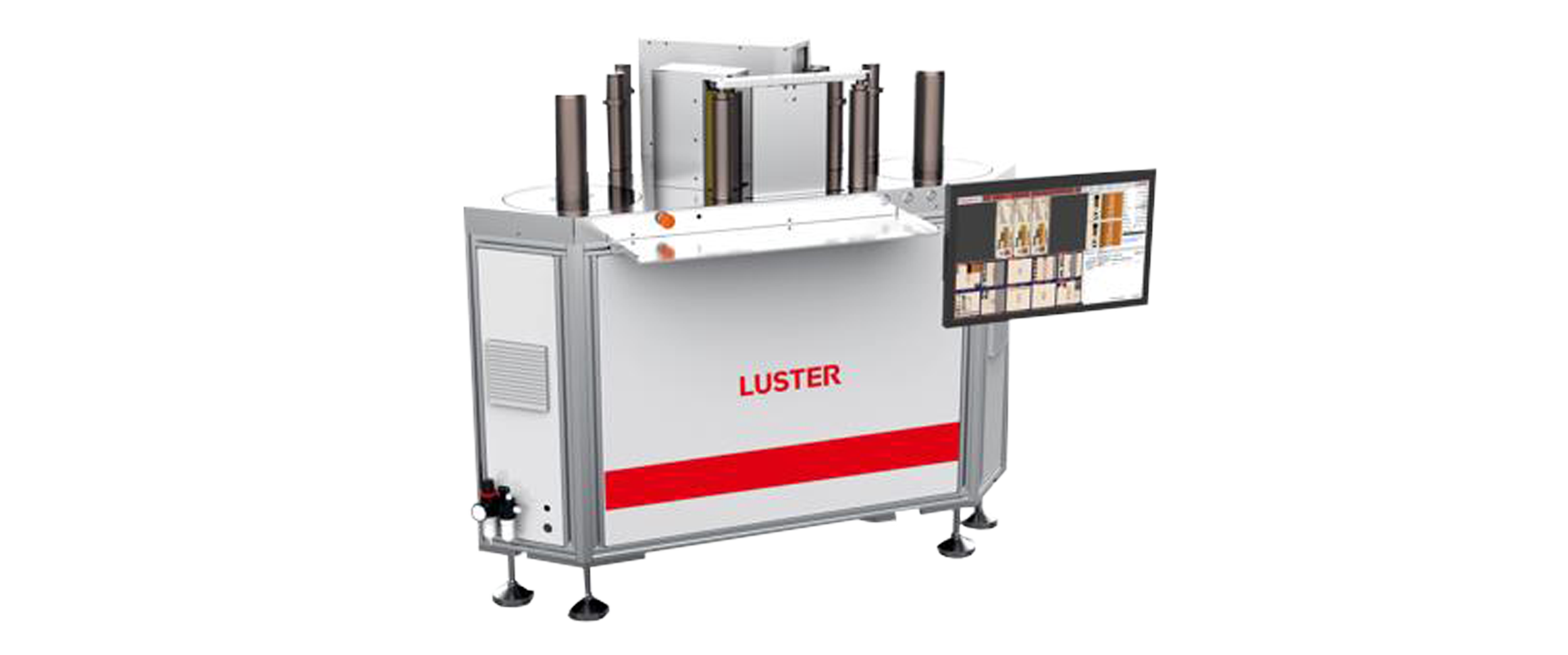

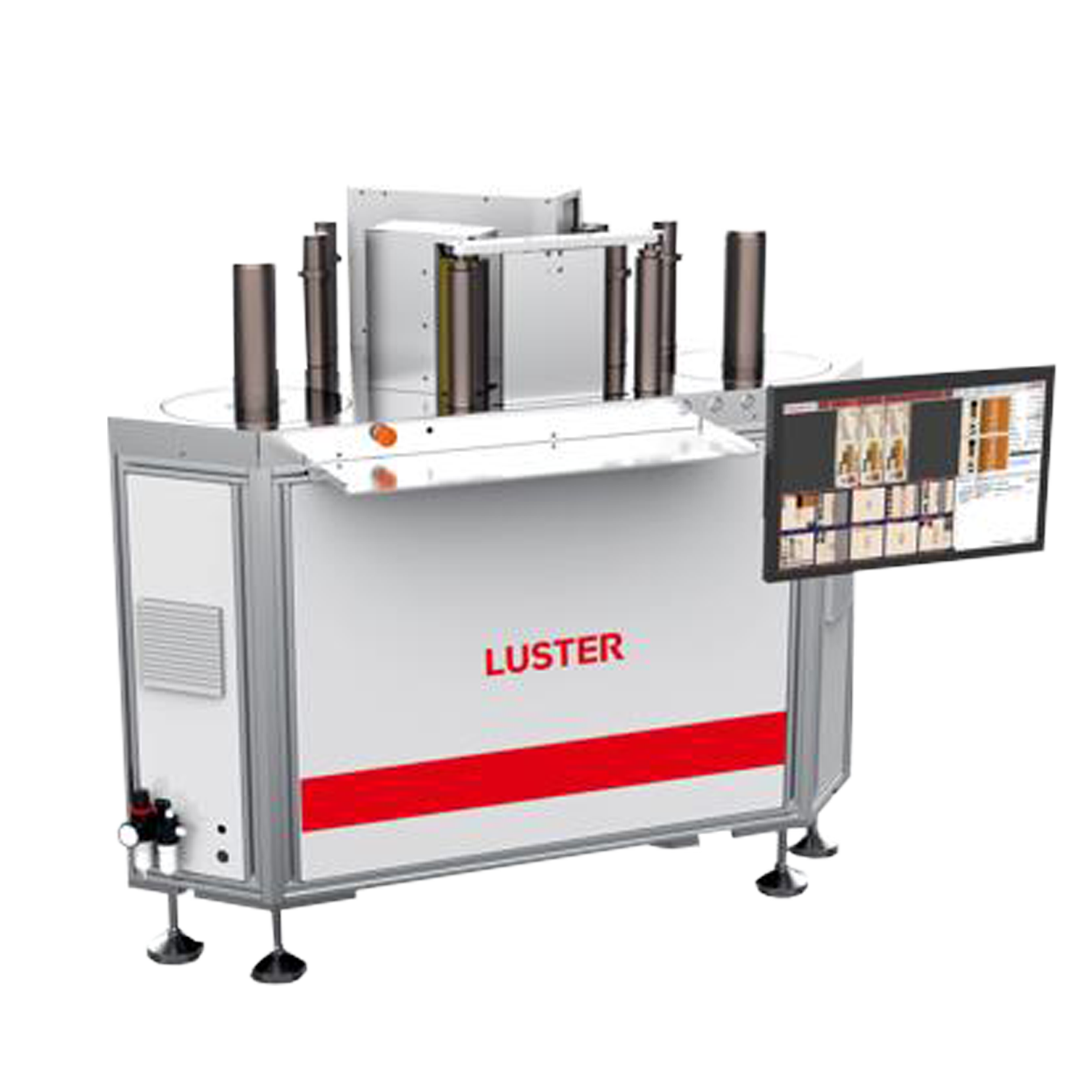

Luster LabelTank-220T

Technical specifications:

Application – Beauty & personal care label, food label, healthcare label, beverage, wine and premium drink label, pharmaceutical label and other narrow web applications and labels.
Defect Type – Missing print, dirty spot, ink spot, deckle edge, mis-registration, improper stamping and die cutting, color variation etc.
Max. inspection width – 220mm.
Max. inspection Speed – 50m/min.
Min. defect accuracy (as a dot) – 0.1mm².
Registration accuracy – 0.1mm.
Operation System – Windows 10, 64-bit, English version.

Table Top Rewinder Configuration
Width – 25–220mm (min roll core size ≥ 25mm).
Max. Mechanical Speed (Without inspection) – 200m/min.
Unwinder max. diameter – Φ400mm.
Max. Rewind Diameter – Φ400mm.
Unwind & Rewind Mandrel – Air expanding mandrel 3" (Φ76mm).
Web path – 2m.
Dimensions (L×W×H) – 1100×1100×1200mm.
Motors – Full servo motors.
Counting – Label count and meter count.
Operation Direction – Bi-directional, forward and reverse winding.

Description

SERIES TABLE TOP INSPECTION REWINDER

LUSTER LABELTANK-220T

Developed and manufactured by LUSTER, LabelTANK-220T series table top inspection rewinder is an innovative all-in-one label inspection solution specially designed for short run narrow web labels and electronic label inspection. It is featured by easy operation, accurate quality control, short web path and small-in-size. It can significantly replace manual check, increase production efficiency and decrease waste of materials during roll changing and machine adjustment. Rewinder is full servo driven, and assured of high accuracy, long lifecycle and easy maintenance. The machine is highly integrated with LUSTER’s inspection system with touch screen, to guaranty easy operation, precise defect stop and simpler inspection experience.

ABOUT LUSTER LABELTANK-220T

MAIN FEATURES

Short Web Path and Small-In-Size – The dimension of the machine is about 1m x 1m x 1m, which is easy to install, convenient to adjust and space saving. The web path is approximately 2m, which significantly decrease operation time and waste of products.

Full Integration Inspection Solution – Guarantee of full quality control with 100% Luster inspection system to check printing defects such as dirty spots, registration, color variation, missing print, and also variable code defects.

Intuitive Operation – The machine is equipped with touch screen HMI. Both the inspection software and machine control are operated in one screen, which is easy to control and use.

MULTIFUNCTION REWINDING SOLUTION

LUSTER LABELTANK-220T

Precise machine stop on defects; Bi-directional web path; Label and meter counting function. “Rewinding- Inspection- Defect Removal- Delivery” can be done in one time to significantly increases the production efficiency, reduce labor cost and improved quality control.
