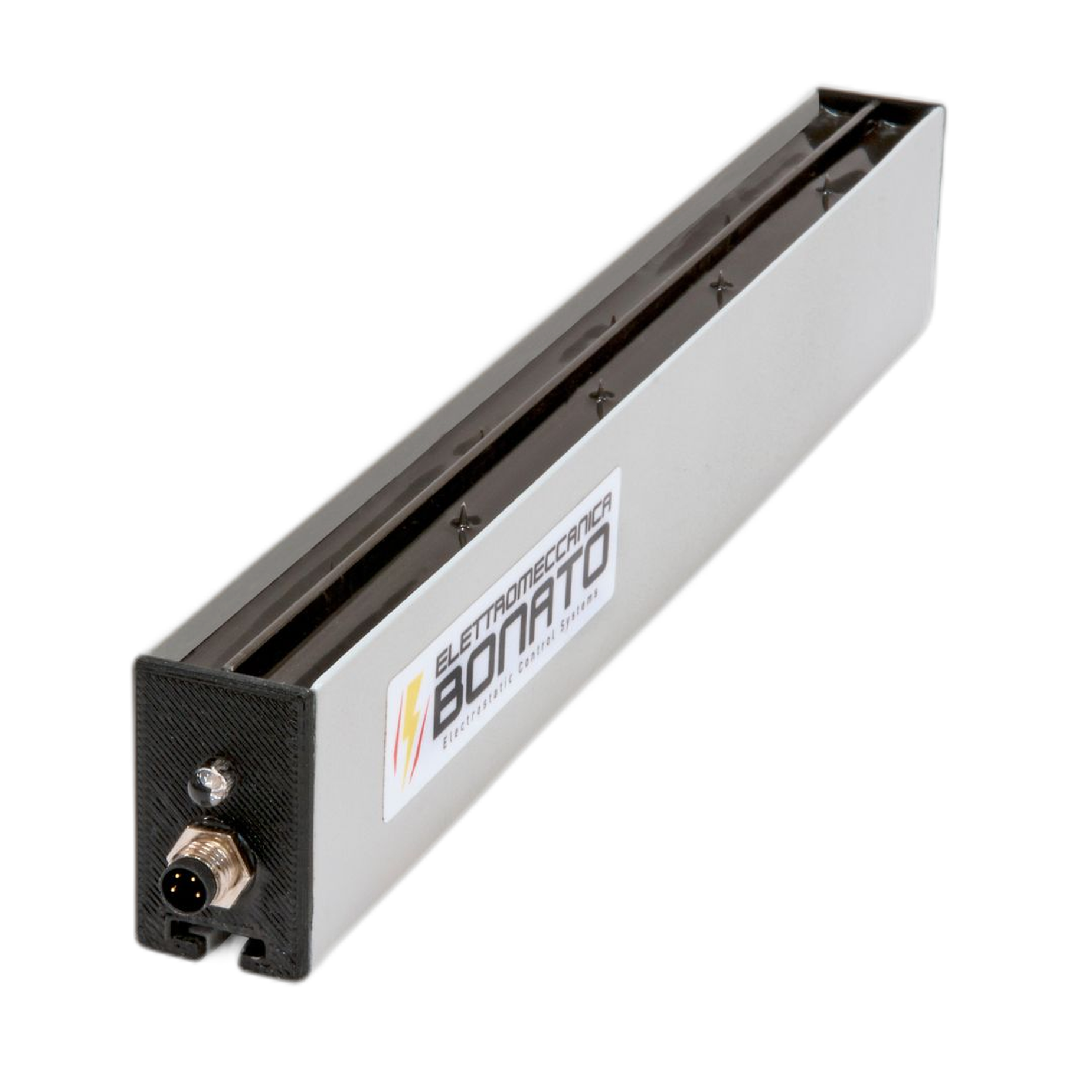

IDB-7-ECO Static Eliminator Bar
Technical specifications:
Power supply – Integrated 12-24 Vdc
Working distance – 20-200 mm
Lengths – Total: 195 mm, useful: 175 mm
Weight – 1,2 kg/m
Ambient temperature – 0°C-70°C, maximum humidity 65%
Operating voltage – 7500 V pulsed
Max Machine Speed – 500 m/min
ABOUT IDB-7-ECO STATIC ELIMINATOR BAR
INTELLIGENT ANTISTATIC TAPE
Our intelligent IDB-7-ECO static eliminator bar (shockless) is used in multiple sectors, such as textile, paper, plastics, printing, converting, packaging, etc.
The IDB-7-ECO static eliminator bar has been designed to be installed in machines operating at high speeds, its design is very compact 40 x 25 mm and the profile is made of FR-ABS filled with epoxy resin.
This static eliminator bar has an integrated power supply, so there is no need for high voltage cables, only 12-24 V power supply and it is equipped with a cleaning warning alarm via an LED.
Green = operating, Red = fault.
The emitters are connected via a resistor to the high voltage, so there are no risks for the operator in case of accidental contact.
Our antistatic bars are custom-built according to the customer's application requirements. This antistatic bar has a slot where M5 screws are inserted for fastening, allowing it to be fixed wherever desired along the entire length of the bar.
