IDB-7 Antistatic bar
Technical specifications:
Power supply – Integrated 12-24 Vdc, maximum current 0.5 A
Working distance – 20-200 mm
Lengths – from 250 mm to 5000 mm
Weight – 1,2 kg/m
Ambient temperature – 0°C-70°C, maximum humidity 65%
Operating voltage – 7500 V pulsed
Max Machine Speed – 500 m/min

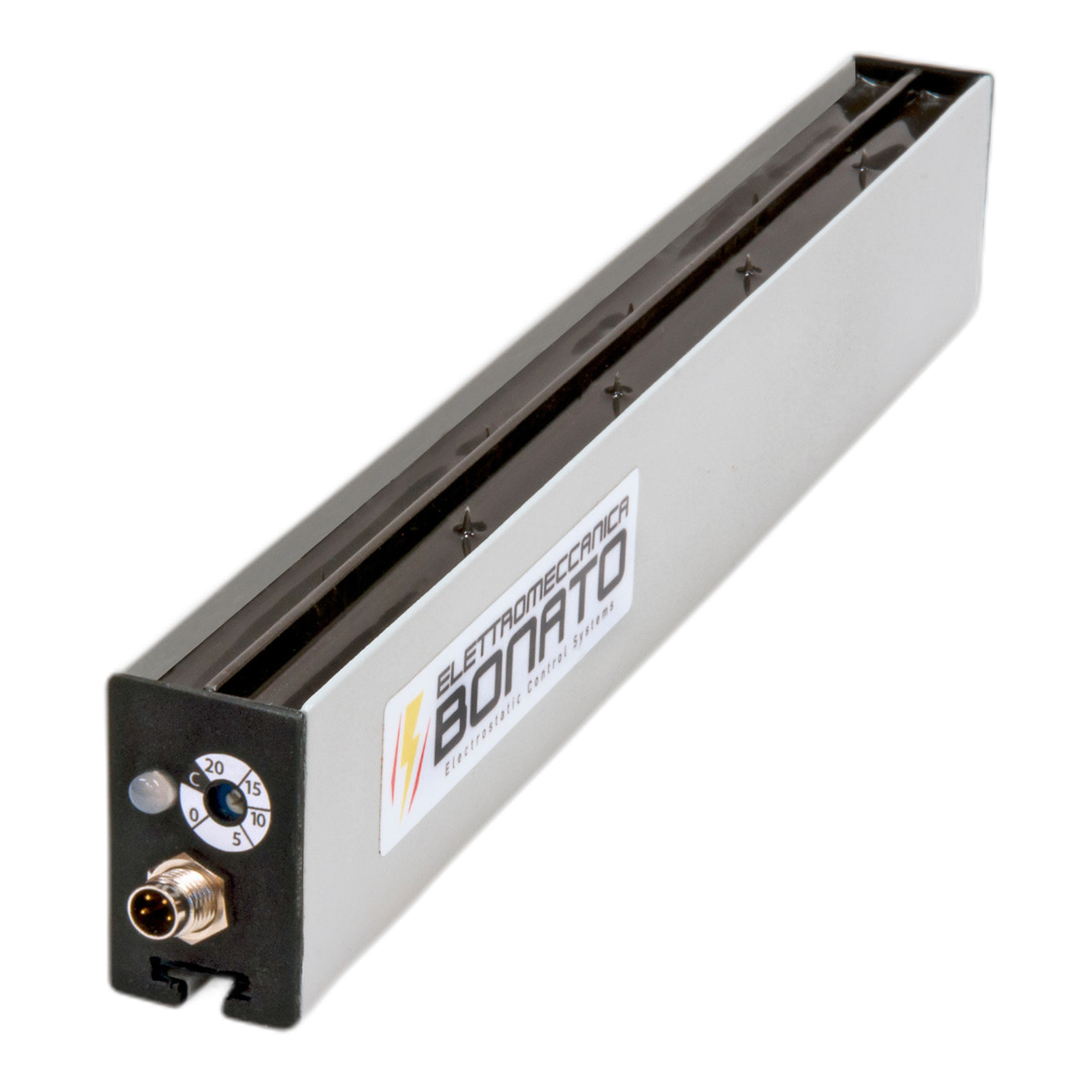

ABOUT IDB-7 ANTISTATIC BAR
INTELLIGENT ANTISTATIC BAR
The IDB-7 intelligent antistatic bar (shockless) of our production is used in multiple sectors, such as textile, paper, plastic, printing, converting, packaging, etc. The IDB-7 antistatic bar has been designed for installation in high-speed machines; its design is very compact (40 x 25 mm) and the profile is made of FR-ABS filled with epoxy resin.
This antistatic bar features an integrated power supply, so there is no need for high-voltage cables, only a 12-24 V power supply. The frequency is adjustable (0-20 Hz) and it is equipped with a cleaning warning alarm via an LED and remote PNP and NPN signals:
- Flashing green/blue: OK
- Purple: cleaning required
- Red: fault
The special alloy emitters are connected to the high voltage via a resistor, so there are no risks to the operator in case of accidental contact. Our antistatic bars are custom-built according to the customer's application requirements. This antistatic bar has a slot where M5 screws are inserted for fastening, allowing it to be fixed wherever desired along the entire length of the bar.
