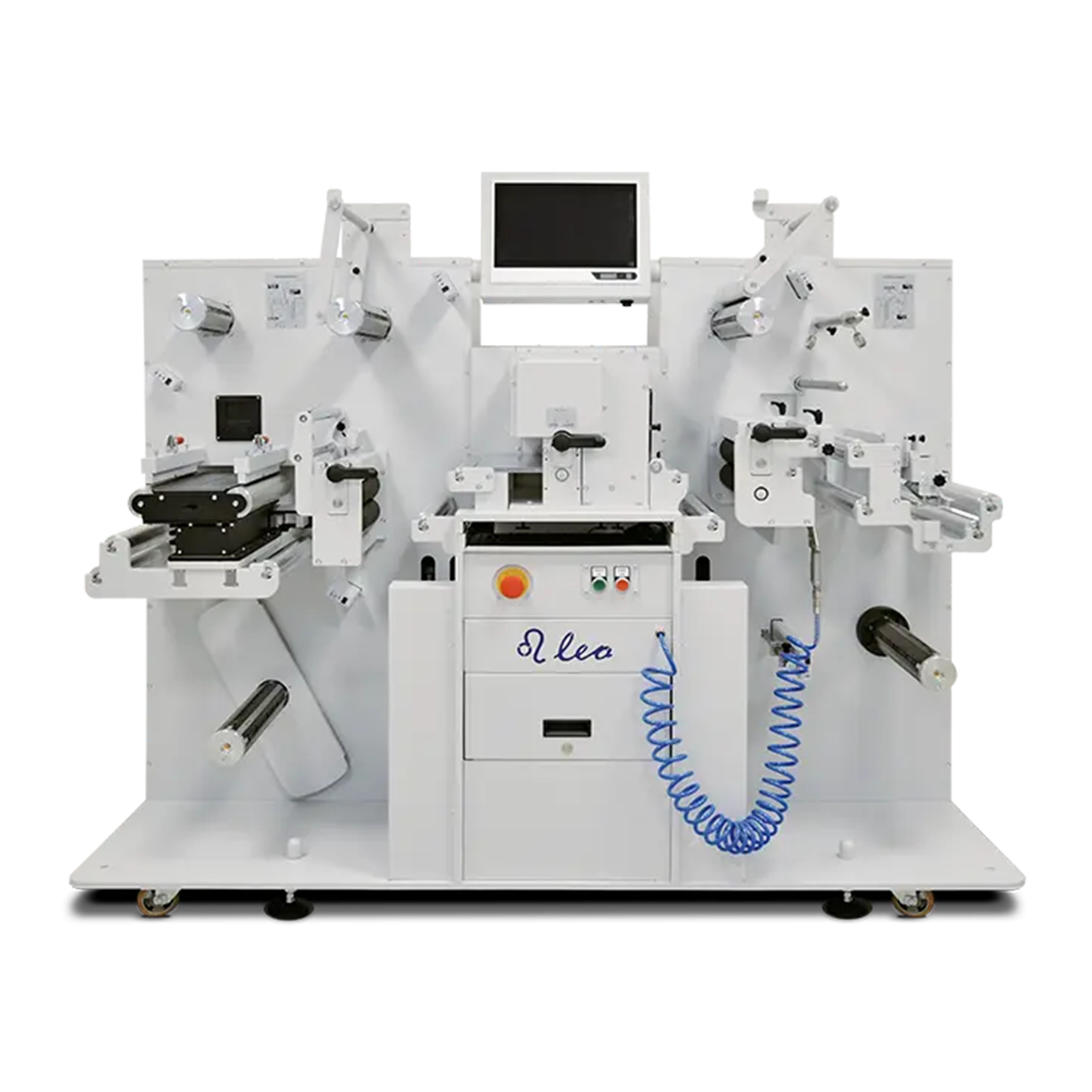

DPR Lео35Pl

Technical specifications:

Input roll diameter – 500mm (19.68")
Finished Roll Diameter – 300mm (11.81")
Web Width – up to 250mm (9.84") / up to 350mm (13.78")
Maximum cutting width – 220mm (8.66") / 330mm (13")
Maximum label length – 500mm (19.68")

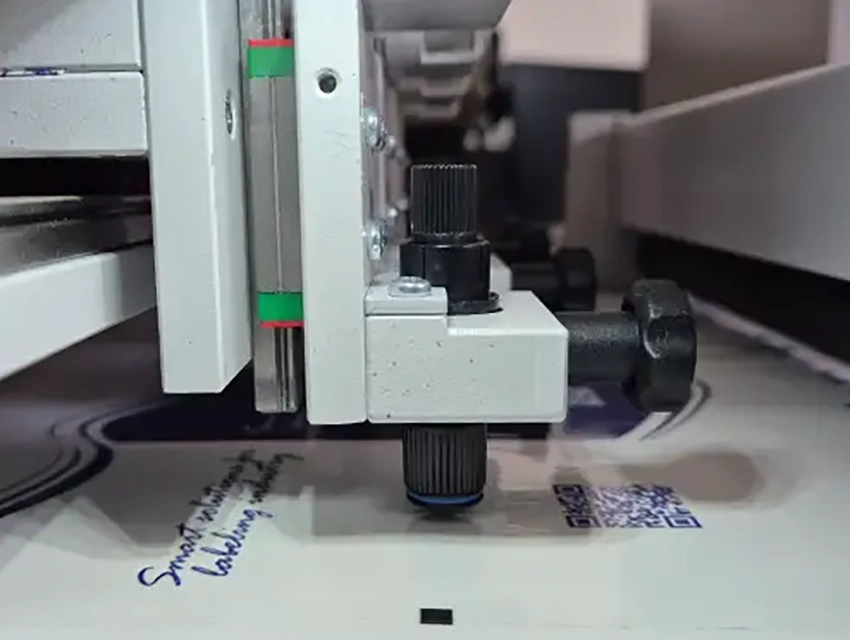

Cutting Technology – 2 or 4 heads drag knife plotter
Registration Sensor / Mark – Laser / 4mm x 4mm (0.16" x 0.16")
Laminate / Laminate Liner Rewinder – Included / Optional
Second Rewinding Shaft – Optional
Cut Ability – Printed and unprinted
Media Type Allowed – Paper and films
Roll core size – Pneumatic 76mm (3") fixed

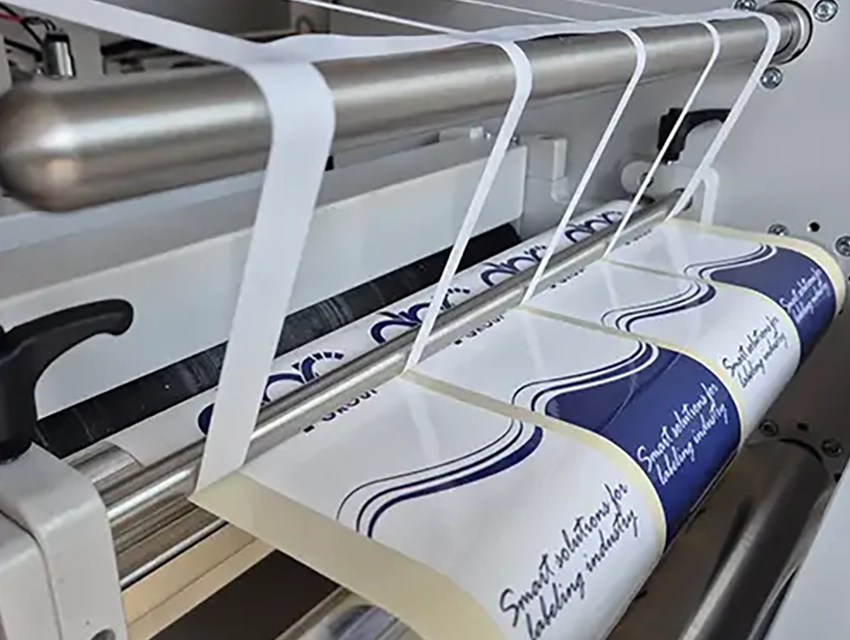

Minimum slitting width – 19mm (0.75")
Number of slitting blades – up to 8
Power Requirements – 100-240V~1Kw, 50/60Hz

Configuration Table:

Model – LEO1 (From 100mm (3.94″) up to 250mm (9.84″))

Laminate Liner Rewinder – 0 / None (retrofit possible)

Second Rewinding Shaft – 0 / None (retrofit possible)

Model – LEO2 (From 100 mm (3.94″) up to 350 mm (13.78″))

Laminate Liner Rewinder – 1 / Yes

Second Rewinding Shaft – 1 / Yes

Description

МНОЖЕСТВО КОНФИГУРАЦИИ

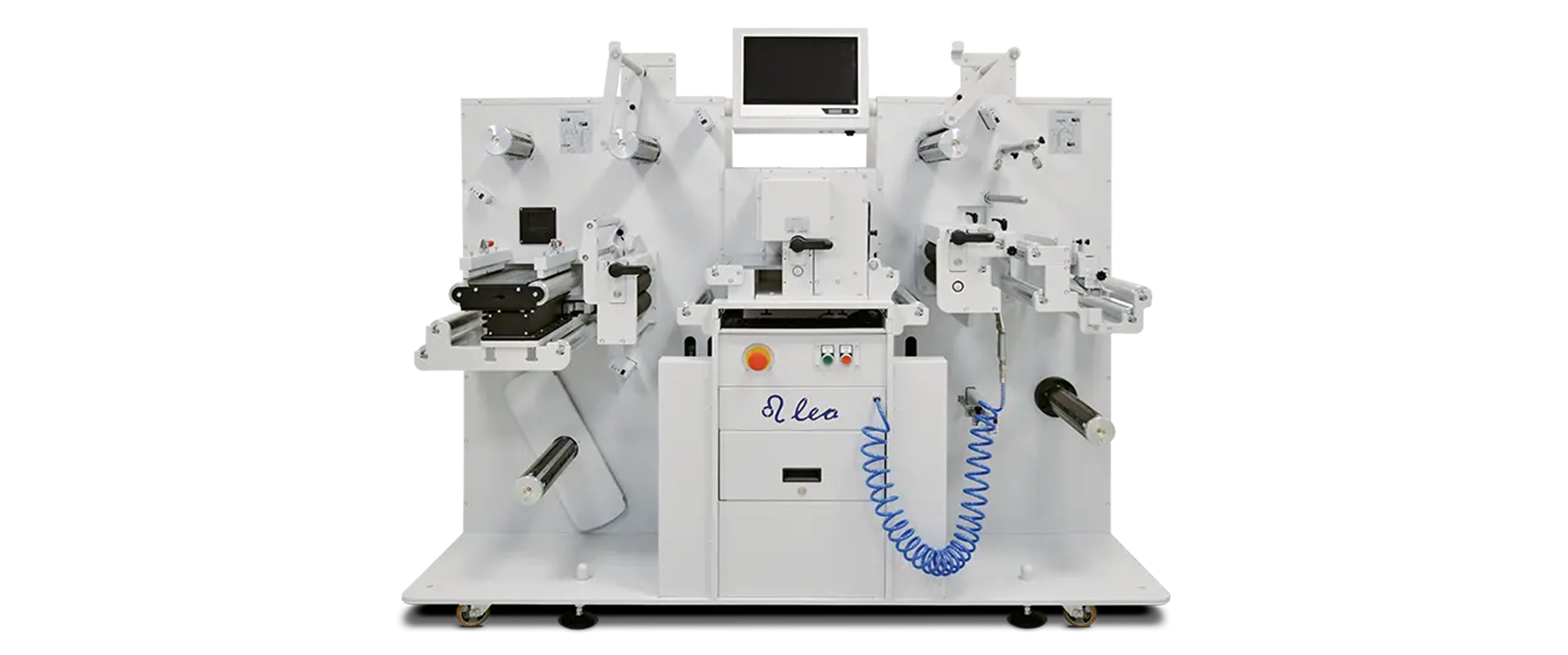

DPR LEO35PL

LEO can be configured to perfectly match specific production needs. It is available for rolls with width from 100mm (3.94") up to 250mm (9.84") or from 100mm (3.94") up to 350mm (13.78") with the laminate liner rewinder and the second rewinder shaft as optional.

Download the brochure of DPR LEO35PL

ABOUT DPR LEO35PL

ПЛОТЕРНА СИСТЕМА ЗА РЯЗАНЕ С МНОГО ГЛАВИ

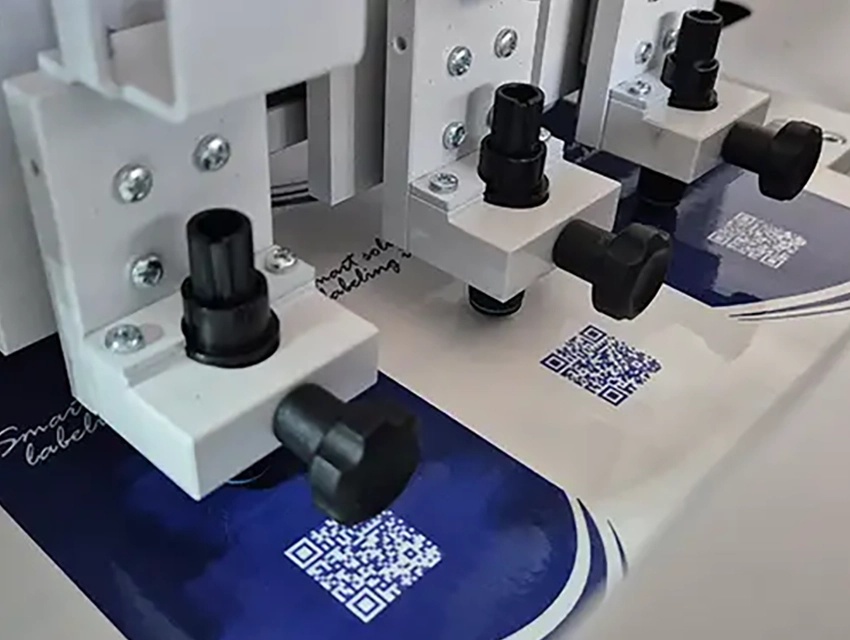

Designed for the most demanding digital label finishing workflows, this multi-head blade cutting system delivers unmatched flexibility, speed, and precision.

Engineered with modularity and scalability in mind, this advanced unit uses multiple independent plotting heads to perform complex contour cuts without the need for traditional dies—making it ideal for short to medium runs, frequent job changes, and personalized or variable designs.

Whether you're cutting paper, PET, PP, or specialty films, this system brings next-generation automation and accuracy into your production line—enhancing output, reducing costs, and shortening turnaround times.

WHY CHOOSE OUR MULTI-HEAD PLOTTER CUTTING SYSTEM LEO

– Adaptability to Various Substrates
– Compact Footprint, Complete Workflow
– Cost-Effective for Short Runs
– No Dies Required
– High-Speed Productivity
– Precision Cutting
– Reduced Downtime

TYPE OF CUT: KISS-CUT, NO MATERIAL LIMITLESS

DPR LEO35PL

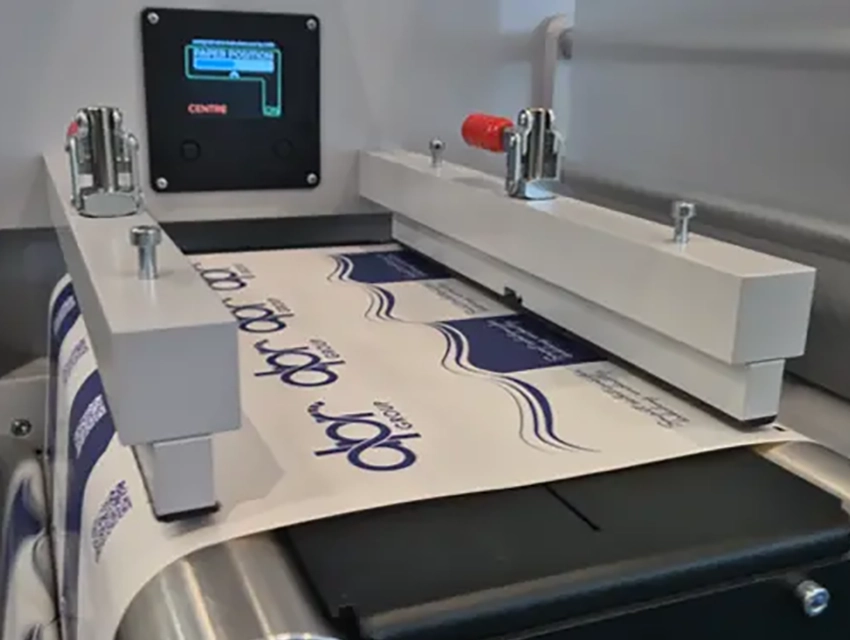

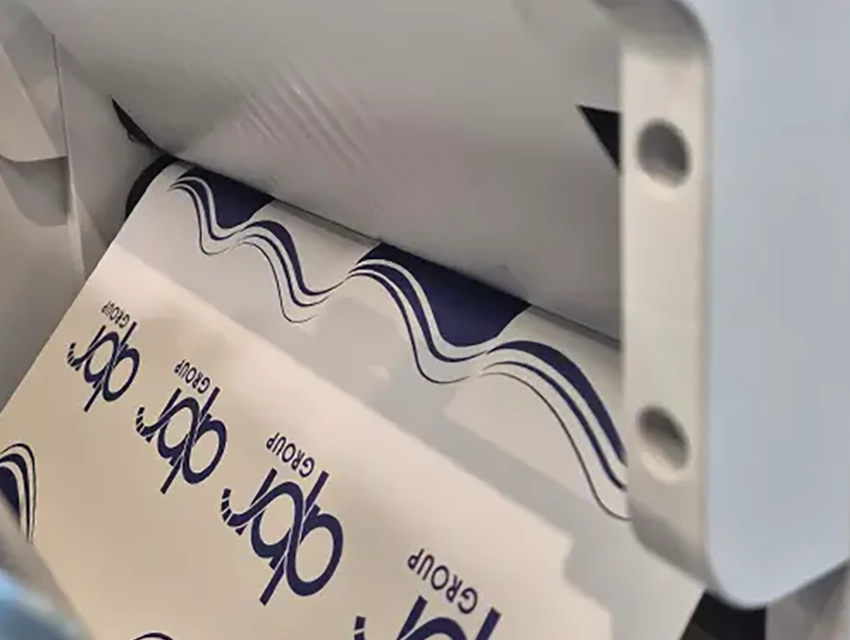

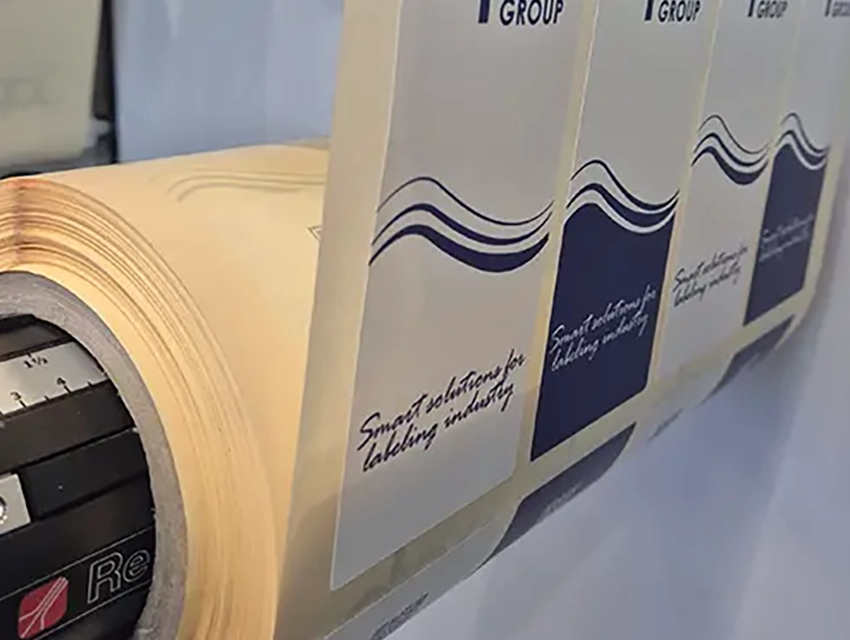

In a single pass LEO is capable of laminating, die cutting, waste removal, slitting and rewinding finished labels onto new rolls that are ready for application.
